This a perfect solution for all of you who want to learn WHEELIE with not flipping ...
The PERFORMANCE of MOXIN Controller is impressive with lot of SPEED. (Tested by us on track😁)
Important: For WHEELIE MODE make sure that your Battery can handle min. 100A regen for short time!
The Controller SET is compatible with a variety of models and motors
Models:
Surron-light bee, Sur-Ron UltraBee (install directly)
TALARIA Sting, TALARIA X3, 79bike Falcon, E-ridepro SS（buy bracket by yourself-we don't provide）
Motors:
Stock Light Bee motor, Stock Ultra Bee motor, Stock Sting 8.0 motor, KO encoder motor, Stock E-Ride motor, QS Motor QS165 motor (Only Wheelie Mode work not perfect till now on QS Motors!) , EBMX XLB-60 motor, EBMX XUB-80 motor, SOTION LTXS motor ect...

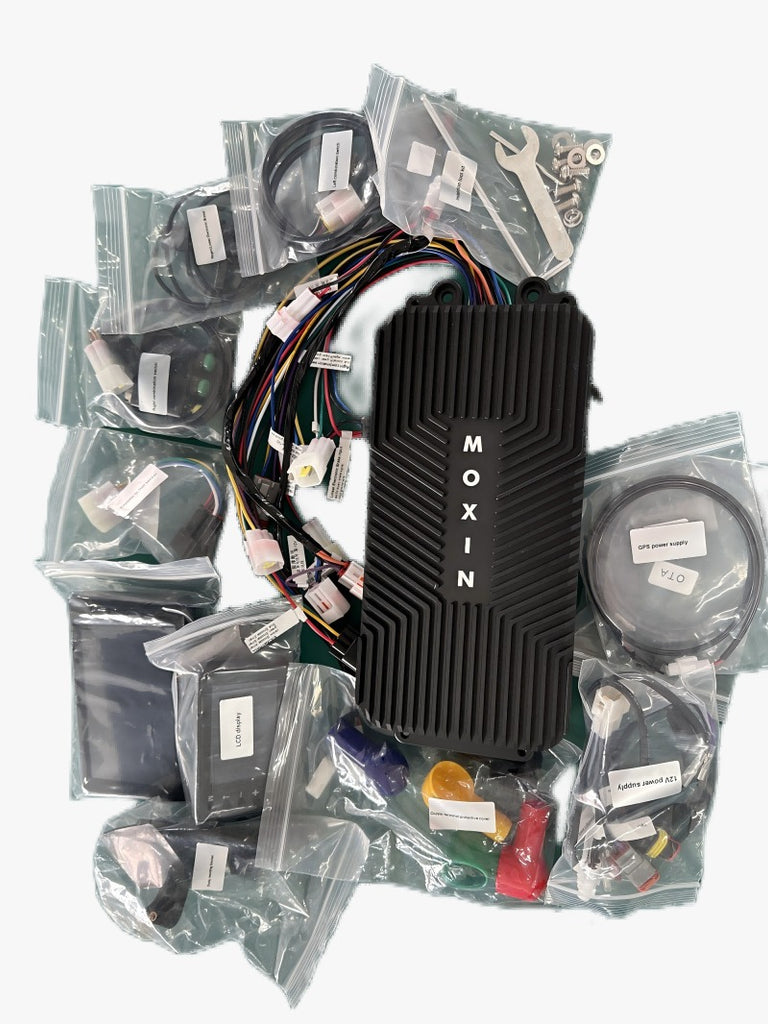

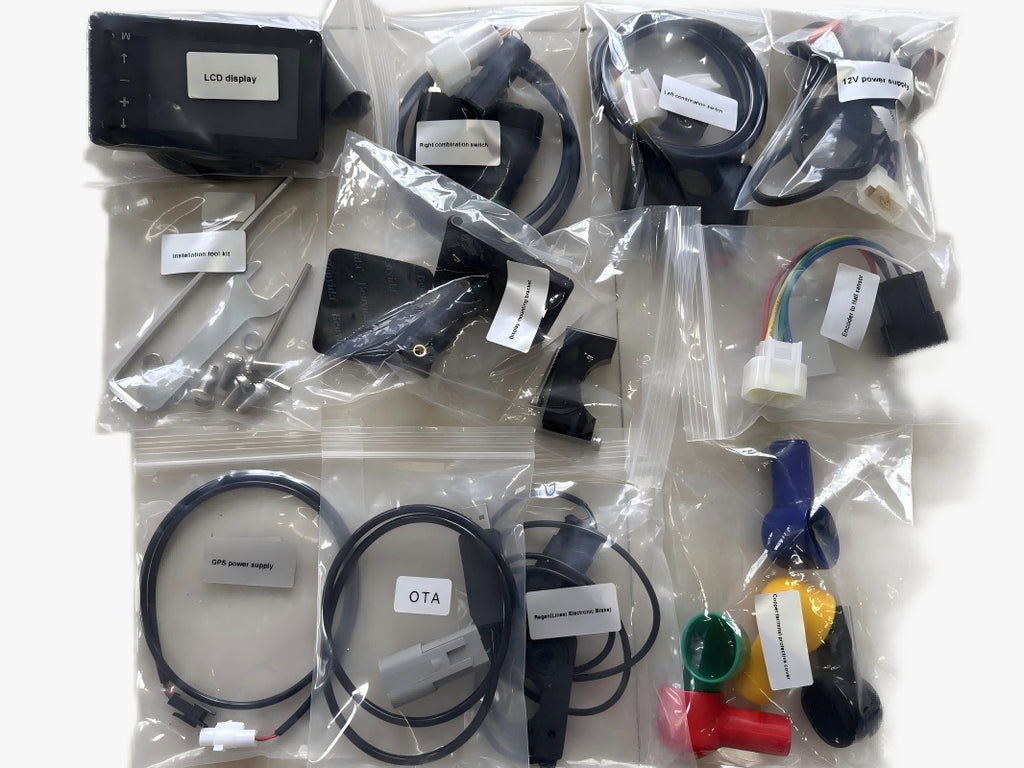

Package contents:
MOXIN Controller
User Manual
Mated connector harness (with detail label)
LCD display (3inch, 5inch, 7inch) +LCD mounting bracket
Left/Right combination switch
Installation tool kit
Regen (Linear Electronic Brake)
Encoder-to-Hall Adapter Harness
OTA (Over-the-Air) update
Specs MOXIN S801100:
Rated voltage: 48V-80V(12s-22s)
Peak phase current: 1100A
Continuous bus: 500A (heat dissipation)
Rated power: 16kw Air / 32kw Water-cooled
Peak power (10s): 80V * 770A= 61.6kW
Max efficiency: 96%
IP68
Weight: 1.7kg
Operating Temperature Range: -40°C to 75°C
Motor Control Protocol: Field Oriented Control
Specs MOXIN S1201000:
Rated voltage: 48V-120V(12s-32s)
Peak phase current: 1000A
Rated power: 21kw Air / 30kw Water-cooled
Peak power (10s): 120V * 700A= 84kW
Max efficiency: 96%
IP68
Weight: 1.9kg
Operating Temperature Range: -40°C to 75°C
Motor Control Protocol: Field Oriented Control
