MOXIN Controller Kit (With Wheelie Protection Setup)
Looking for the ultimate way to master wheelies safely? This is the perfect solution to learn wheelie control without flipping. The MOXIN Controller delivers impressive track-proven performance, maximizing acceleration and top-end SPEED.
Technical Requirement for Wheelie Mode:
To safely run the wheelie assistant mode, your battery system must be capable of handling at least 100A of regenerative braking (regen) for short durations.Compatibility & Software:
The controller kit is highly versatile and compatible with a wide range of bike models and electric motors. To guarantee peak reliability and performance, every unit is delivered with the latest firmware updates.

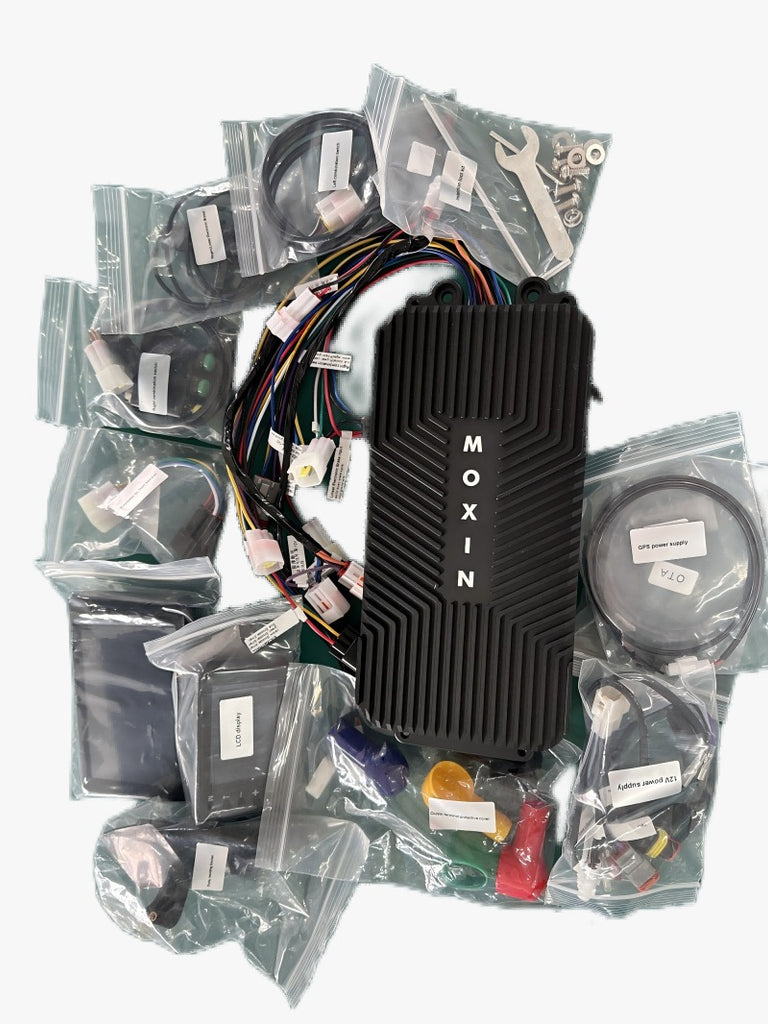

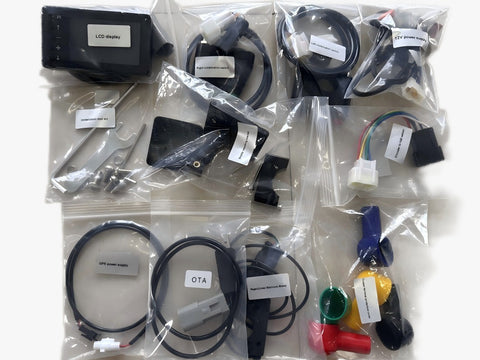

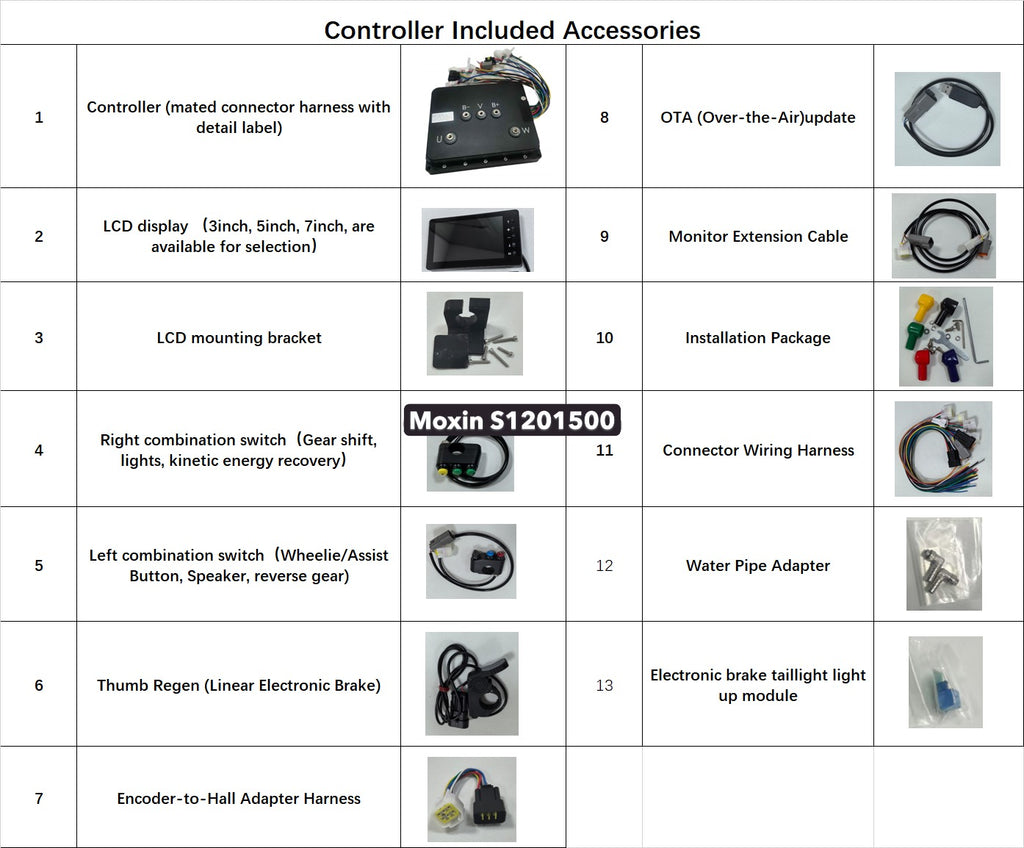

Package contents:
MOXIN Controller
User Manual
Mated connector harness (with detail label)
LCD display (3inch, 5inch, 7inch) +LCD mounting bracket
Left/Right combination switch
Installation tool kit
Regen (Linear Electronic Brake)
Encoder-to-Hall Adapter Harness
OTA (Over-the-Air) update
Models:

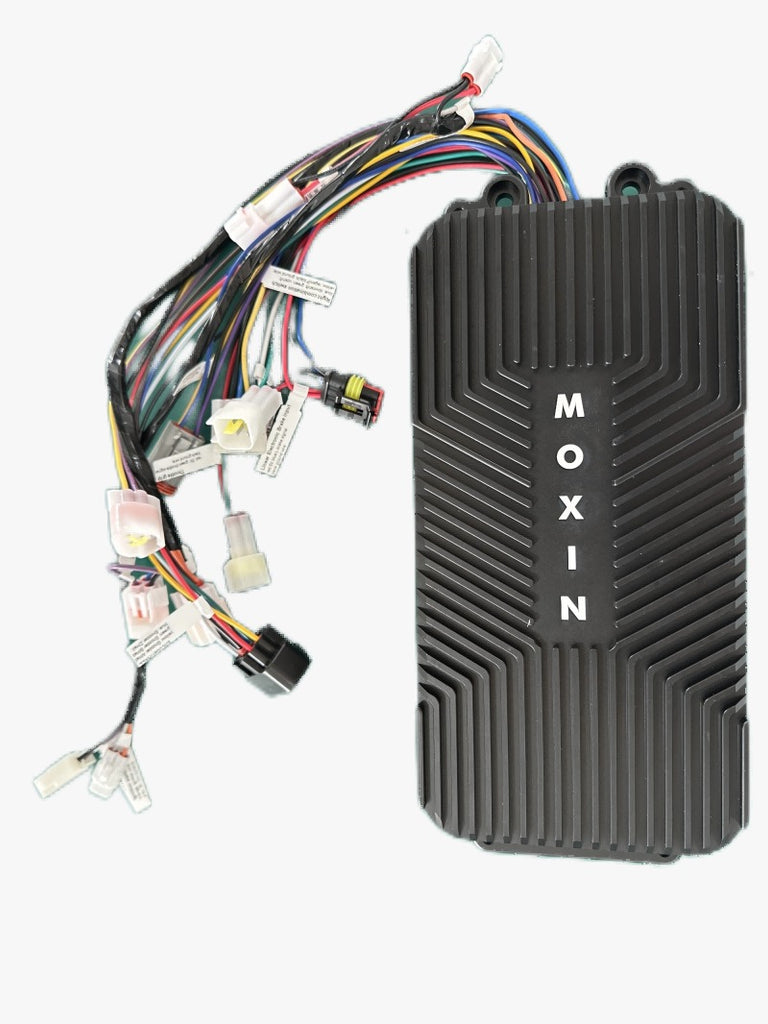

S881100
Surron-light bee, Sur-Ron UltraBee (install directly)
TALARIA Sting, TALARIA X3, 79bike Falcon, E-ridepro SS（you need to do brackets by yourself , we don't provide）Connector must be adapted.
RFN Rally PRO / Malaguti XAM with Harness adapter
S1201000
Universal for 120V Rated max. Possible also for Surron Storm Bee
Adapting yourself, 84 KW peak

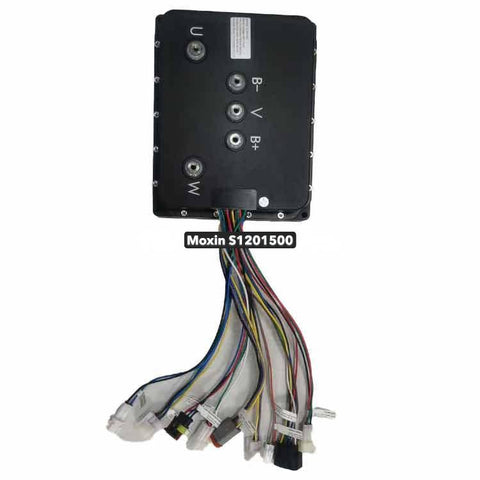

S1201500
Universal for 120V Rated max. High Ampere (1500A !) 126KW peak !!
Water-cooled.
Motors:
Stock Light Bee motor, Stock Ultra Bee motor, Stock Sting 8.0 motor, KO encoder motor, Stock E-Ride motor, QS Motor QS165 motor (Only Wheelie Mode work not perfect till now on QS Motors!) , EBMX XLB-60 motor, EBMX XUB-80 motor, SOTION LTXS motor, Torp TM 25/40 ect...
Specs MOXIN S801100:
Rated voltage: 48V-80V(12s-22s)
Peak phase current: 1100A
Continuous bus: 500A (heat dissipation)
Rated power: 16kw Air / 32kw Water-cooled
Peak power (10s): 80V * 770A= 61.6kW
Max efficiency: 96%
IP68
Weight: 1.7kg
Operating Temperature Range: -40°C to 75°C
Motor Control Protocol: Field Oriented Control
Specs MOXIN S1201000:
Rated voltage: 48V-120V(12s-32s)
Peak phase current: 1000A
Rated power: 21kw Air / 30kw Water-cooled
Peak power (10s): 120V * 700A= 84kW
Max efficiency: 96%
IP68
Weight: 1.9kg
Operating Temperature Range: -40°C to 75°C
Motor Control Protocol: Field Oriented Control
